4.Coupled Train

A coupled train is a combination of two different type trains such as DMU+EMU, DMU+assistant locomotive.

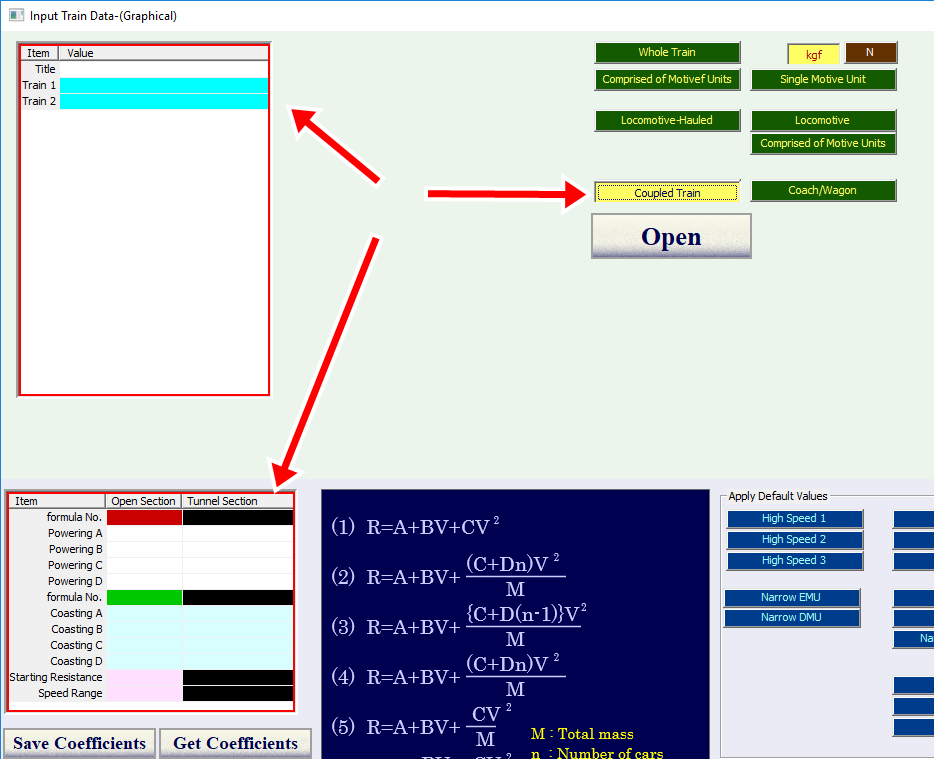

Click "Coupled Train" button..

Input the title and select train files to couple. As the running resistance of each train cannot be applied because the air resistance of the following train is duplicated.
So that you must specify the running resistance for  the coupled condition.

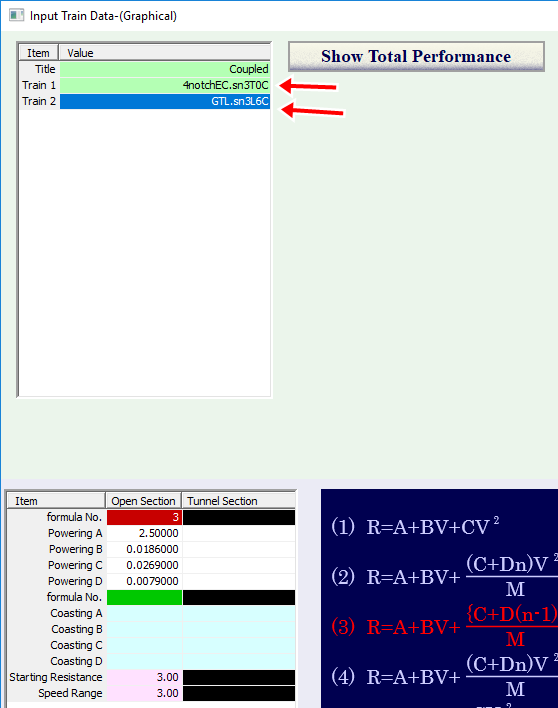

The red arrowed field is the file selection field. When focused, the file explorer is displayed  and you can select a train  file.

Then save data.
