a.Train Comprised of Motive Unit

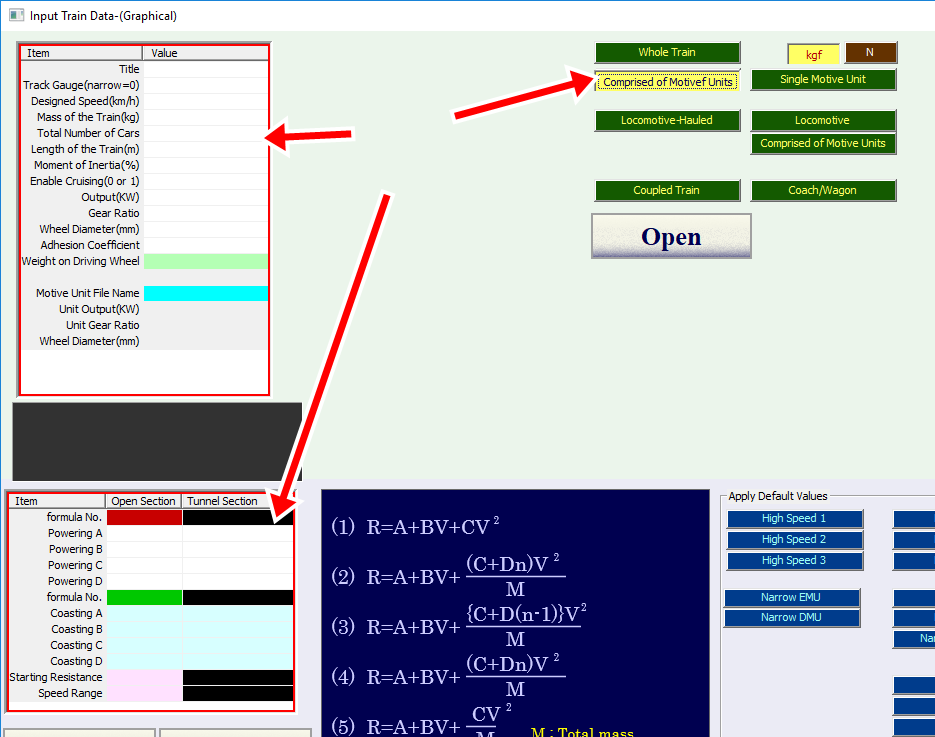

Click "Comprised of Motive Unit" button below "Whole Train" button..

Input required data in the same way as "Whole Train".

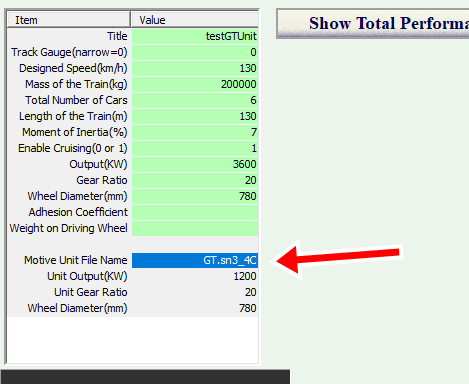

The red arrowed field is the file selection field. When focused, the file explorer is displayed  and you can select a motive unit file.

Then save data.

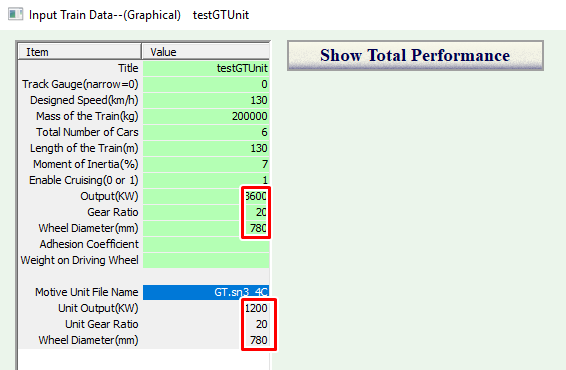

The whole train performance is determined by values in red frames shown below.

In this case, the gear ratio and the wheel diameter are same and the output is 3 times as large as that of motive unit.
This means the train is comprised of 3 motive units and 3 trailer cars.

By changing these values, you can simulate the performance easily.
