III.Outline of Graphical Input Method

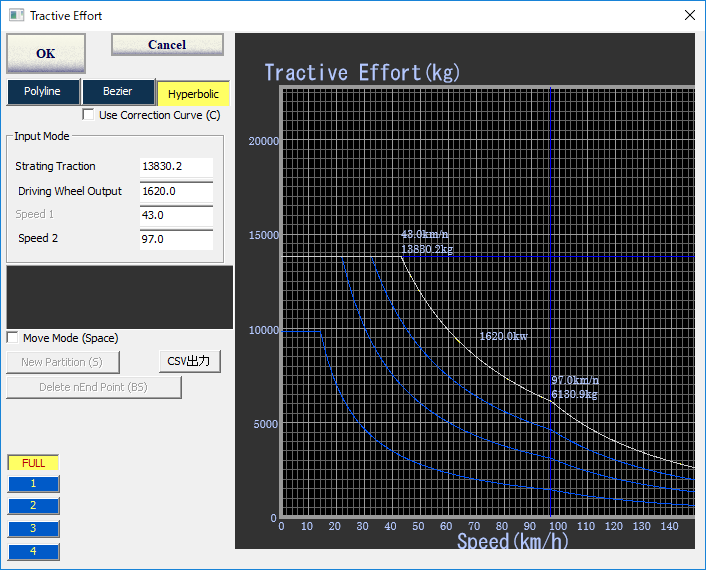

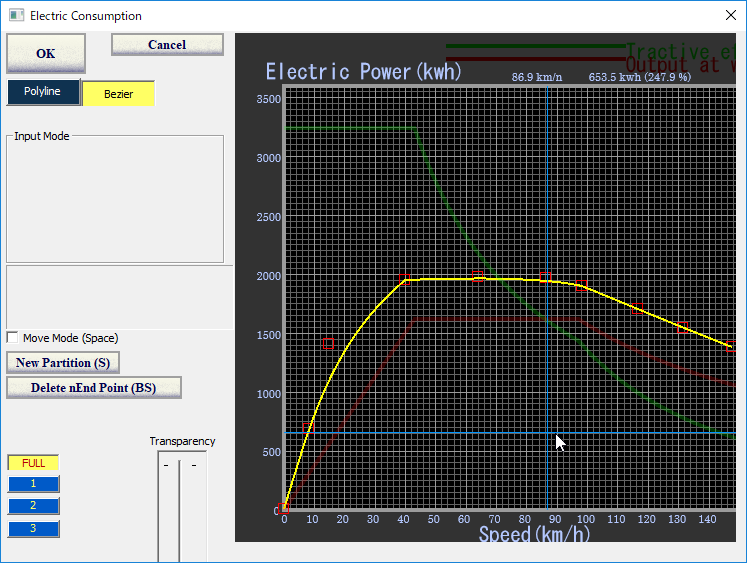

Using the graphic editor, you can input and edit the tractive effort curve,  the energy consumption curve and other performance curve.
The running resistance is specified by formulas and their coefficients.

.

There are 4 curve formats, polyline, Bezier curve, theoretical hyperbolic curve and its correction curve.

Train Composition

There are four ways to compose a train.

Whole Train

The whole train performance data

Locomotive Hauled Train

Train is composed by specifying  locomotives and trailers

Train with motive units

Train is composed of motive units.

Coupled Train

Train is composed of two trains or locomotives

"Whole Train" is the universal method for all type of trains to input and easy to understand for beginners.



In this input method, the input performance data is the performance of a whole train formation.

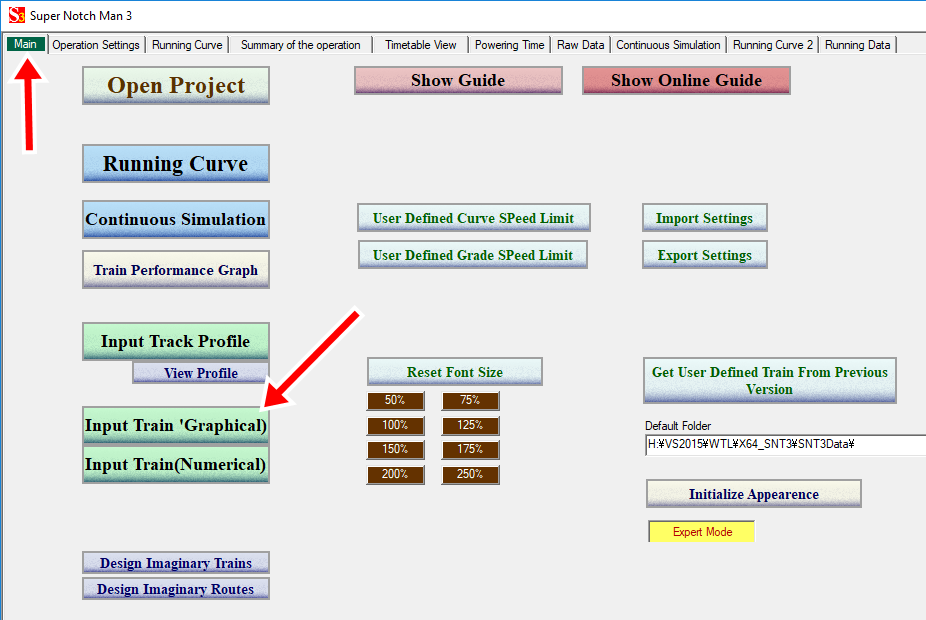

Click "Main" tab and then click "Input Train(Graphical)" button.

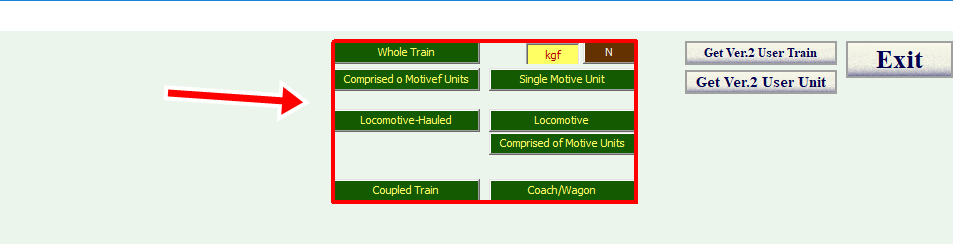

The new dialog box is displayed and there are buttons surrounded by the blinking red frame.

These buttons are specific to the train data type .

kgf

The unit of force is kg.

N

The unit of force is Newton.

Whole Train

The data value is that of the whole train.

Comprised of Motive Unit

Specify the motive unit to build up the train

Locomotive Hauled Train

Specify the trailer and the locomotive to haul

Single Locomotive

Base data for "Locomotive Hauled Train"

Comprised of Motive Unit

Locomotive comprised of motive unit

Single Motive Unit

Base data for "Comprised of Motive Unit"

Coach/Wagon

Base data for "Locomotive Hauled Train"

Coupled Train

Train is composed of two trains or assistant locomotives

Go to next page
