EMU (AVAF)

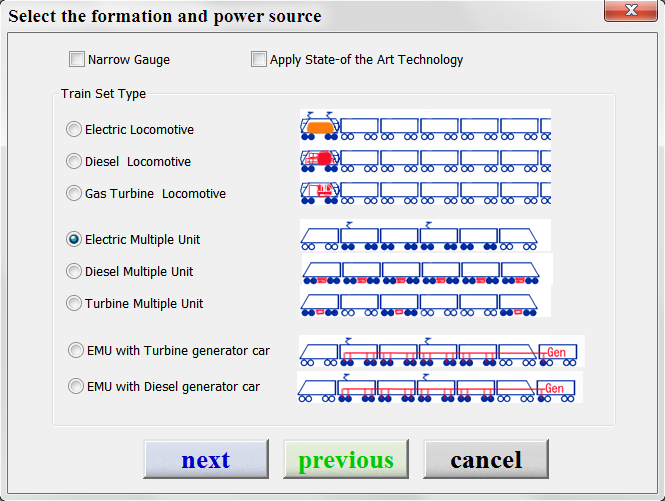

(1) Select the track gauge. If 'Narrow Gauge' is checked, narrow gauge trains are designed.

(2) Select the technology level. If 'Apply State of the Art Technology' is checked, designed trains are more light weight and efficient.

(3) Select the train set type--Electric Multiple Unit.

Click 'Next'.

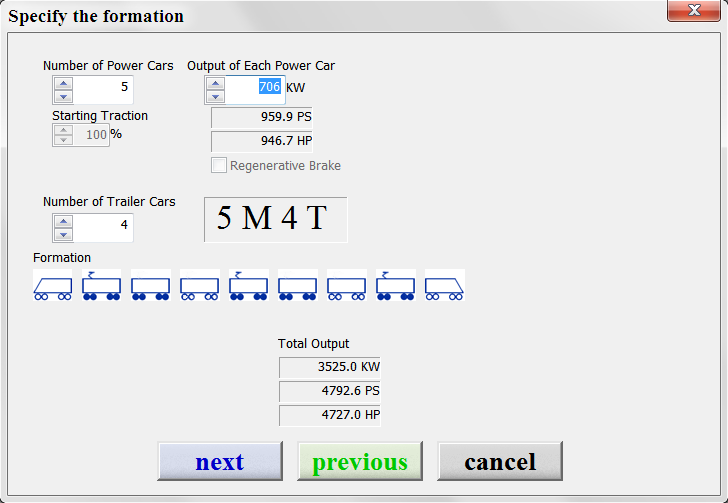

(1) Specify the train formation. '5M4T' represents the consist of 5 motive cars and 4 trailer cars.

(2) Set the output of one motive car.

(3) Enable or disable the regenerative braking system.
 If enabled, the kinetic energy is regenerated according to the braking force and the train's intrinsic regenerative performance and the total energy consumption of the train is reduced.

Click 'Next'.

(1) Specify the designed speed. If the track gauge is narrow, the maximum speed is limited to 260km/h

(2) Specify the train characteristics.
If 'High Speed Light-weight Train Set' is selected, more lighter weight and lower running resistance  is applied.

Click 'Next'.

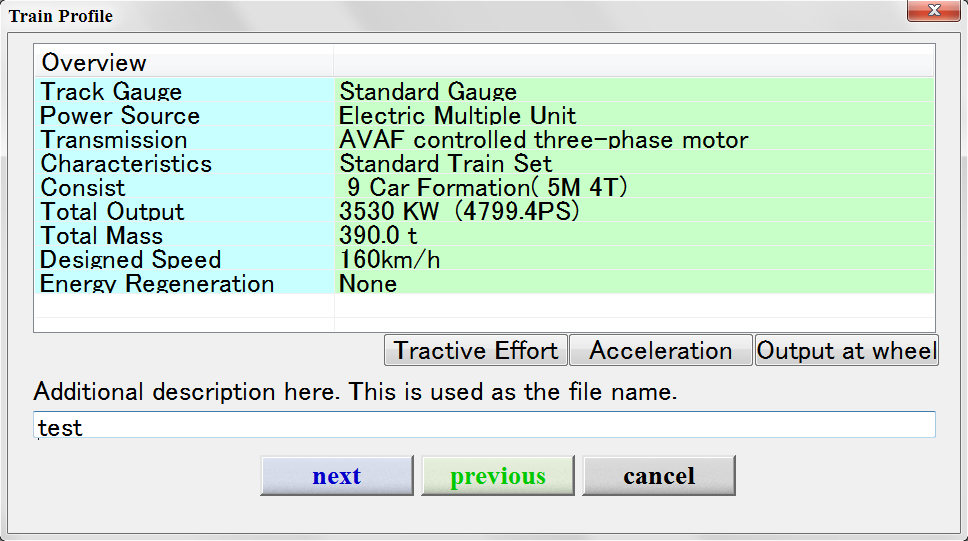

Click 'Next' and save the data.

If you wish to check the train performance, click 'Tractive Effort' or 'Acceleration' or 'Output at wheel'.
