i.Braking Current

This is the electric current of a single motor while the train is braking. The data is used to calculate RMS (Root Mean Square) current.

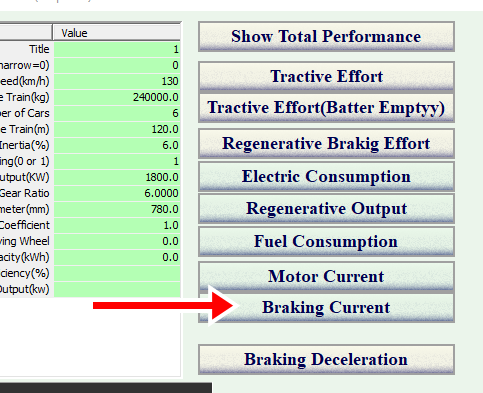

Click "Braking Current" button.

Then specify the curve type.
In this section, polyline and Bezier curve are available.

If the tractive effort data has been already input, it and the output at wheel rim iare displayed as reference information.
The concentration of their color can be controlled by the slider at the lower left side.

The plotting method is same as "Tractive Effort".
