4.Change the battery usage while running

In the edit mode, the battery performance of a hybrid train can be changed dynamically.

Change the charging performance

Switch to the edit mode.

In the initial state, the battery is charged only the train is braking.
To charge the battery while coasting, specify the place to change the charging mode and then press 'C' key on the keyboard and then input the value.

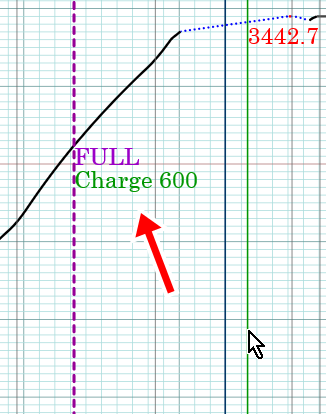

The string "Charge" and the input value are displayed shown above.
To change the value, clear the character with [Delete] key or [Back space] key and retype.



Change the output of the battery

Switch to the edit mode.

In the initial state, the battery output is determined by the original train's battery output when it is designed..
To change the battery output while running, specify the place to change the output and then press 'B' key on the keyboard and then input the value.

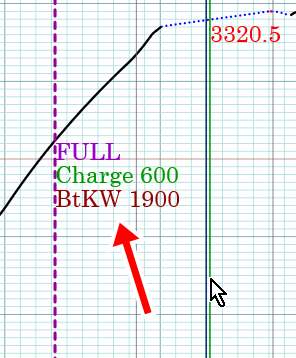

The string "BtKW" and the input value are displayed shown above.
To change the value, clear the character with [Delete] key or [Back space] key and retype.

In the edit mode, the calculation is performed around the area currently displayed on the screen to improve the response.
So that the item that is influenced by the train's starting position like the stored energy must be calculated in the entire route.
Click [Recalc] button or exit the edit mode to perform this
